- Total-Top-Service (TTS) design provides convenient no-dig servicing
- Valve-in-Head configuration simplifies installation
- Isolated, grease-lubricated gear drive
- Factory-installed rubber logo cap
- Arc adjustment: movable stops for left/right arc adjustment
- Ratcheting nozzle turret
ST-1700-V
387,00 €

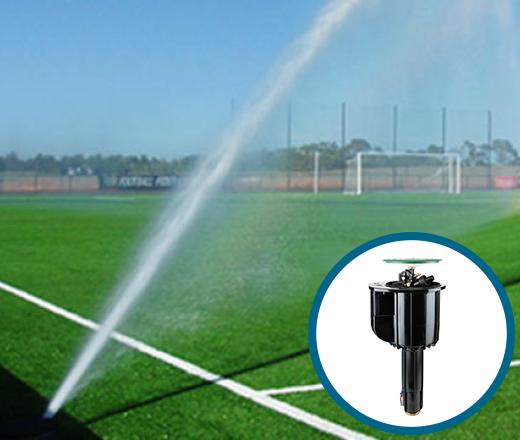

The powerful, long-range ST-1700-V Synthetic Turf Rotor features a Valve-in-Head and Total-Top-Serviceability design for easy installation and maintenance.
Application Synthetic Turf Sports Fields
Radius 105′ to 157′
Flow 92.4 to 258.7 GPM
Inlet Size 2″ NPT
- Total-Top-Service (TTS) design provides convenient, no-dig servicing
- Valve-in-Head (VIH) configuration simplifies installation
- Heavy-duty, internal gear drive provides years of reliable operation
Specifications
OPERATING SPECIFICATIONS
- Radius: 105′ to 157′
- Flow: 92.4 to 258.7 GPM
- Operating pressure range: 60 to 115 PSI
- Arc setting: 40° to non-reversing 360°
- Speed of rotation: 80 seconds at 90 PSI (single 180° sweep)
- Precipitation rate: 1.8 in/hr approximately
- Warranty period: 5 years for component parts
User-Installed Options
- Infill Barrier System Rubber Cover Kit: P/N ST-IBS-1700
- Short-Radius Nozzle Kit: P/N 959900
- Optional high-flow HSJ Swing Joint, 3″ male NPT inlet, 2″ male NPT outlet, 12″ lay arm: P/N HSJ-5-3-8-3-12
Features
The ST-1700-V long-range synthetic turf rotor offers high-performance irrigation from the field perimeter while integrating Valve-in-Head (VIH) capabilities and a Total-Top-Service (TTS) design to simplify installation and maintenance. The ST-1700-V is a great choice for cooling, cleaning, flushing, and surface preparation for synthetic sports fields.
The rotor has a heavy-duty gear drive that provides power and performance in the field. The VIH design integrates the control valve, solenoid, and manual On-Off-Auto selector within the rotor’s heavy-duty, impact-resistant case to create convenient and compact design appreciated by installers and end users.
With TTS technology, every serviceable component can be accessed from the surface without cutting into the synthetic turf. In addition, the spacious flange compartment can accommodate full-sized waterproof splice connectors, and a cradle in the compartment can nest a decoder for two-wire control system applications.
