- Proven, isolated, grease-lubricated gear drive delivers consistent top-performance
- Flexible arc adjustment from 40° to non-reversing 360° with left and right movable stops makes it easy to set a precise arc
- Ratcheting nozzle turret for simple setup
- Adjustable speed of rotation up to 65 seconds enables quick wetting where dust control is needed
- Stainless steel and brass internal construction for long-term reliability
- Six nozzle choices included from 16 to 26 (20 standard) with 22.5° trajectory for choosing the perfect option
Specifications
Operating Specifications
- Nozzle trajectory: 25º
- Radius: 107′ to 165′
- Flow: 96.2 to 326.8 GPM
- Operating pressure range: 60 to 120 PSI
- Precipitation rate: 2.25 in/hr approximately
- Warranty period: 5 years for component parts
User-Installed Options
- Adapter, 2″ male spigot x 2″ male BSP: P/N 241400SP
- ST-1600 Short-Radius Nozzle Kit: P/N 959900
Features

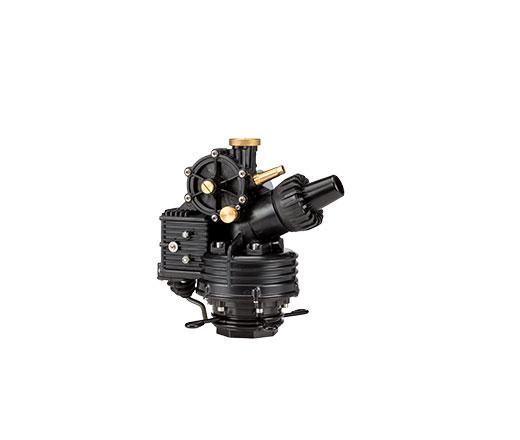

The ST-1600-HS-BR riser-mounted rotor is the perfect solution for retrofitting synthetic fields and managing dust control in horse arenas, corrals, and pastures.
Designed for powerful performance and easy servicing, it’s the most reliable gear-driven synthetic turf rotor on the market.
