- External/internal manual bleed allows for quick and easy activation at the valve
- Double-beaded diaphragm seal design ensures leak-free performance
- Captive bonnet screws eliminate the possibility of lost parts during disassembly
- Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
- Removable anti-siphon cap for simple servicing
- Encapsulated solenoid with captive plunger used on every Hunter valve provides hassle-free service
- Flow control maximizes efficiency and prolongs the life of the system
PGV-ASV
328,00 €

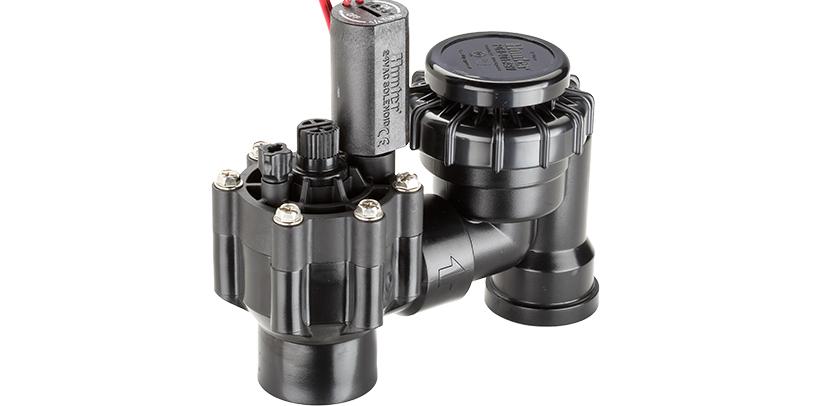

The Hunter PGV-ASV Anti-Siphon Valve is a backflow prevention device and irrigation control valve for sprinkler irrigation systems. Gain simple and trouble-free operation without the need for a separate backflow preventer. Ensure installation is in a region that allows for irrigation systems without backflow preventers. Always consult local construction codes.
- Size ¾”, 1″
- Flow 0.2 to 40 GPM
Specifications
User-Installed Options
- Accu Sync® pressure regulation at the valve
- DC-latching solenoid for battery-powered controllers (P/N 458200)
Factory-Installed Options
- DC: DC-latching solenoid for battery-powered controllers
Operating Specifications
- Flow: 0.2 to 40 GPM
- Recommended pressure range: 20 to 150 PSI
- Temperature rating: 150°F
- Warranty period: 2 years
Features
With the PGV-ASV, irrigation systems that require backflow prevention for every zone can enjoy simple operation and trouble-free performance without the need to install a separate backflow preventer. This convenient all-in-one unit offers a host of features that professionals expect from a Hunter valve. Such features include a rugged diaphragm that provides a leak-proof seal; internal and external bleed for manual operation, stainless steel hardware and springs, stainless steel bonnet screws, and heavy-duty PVC construction and glass-reinforced bonnet. The PGV-ASV also includes flow control, allowing accurate adjustment. For proven reliability in an anti-siphon/electric valve, PGV-ASV is the ideal solution.
