- Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50° to 360°
- Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
- Part- and full-circle in one model for flexibility across landscapes and reduced inventory
- Color-coded nozzles make identification easy
- Available opposing nozzle model for even watering in full-circle applications (I-40-ON model)
- Drain Check Valve prevents low-head drainage (up to 15′ of elevation)
I-40
112,00 €

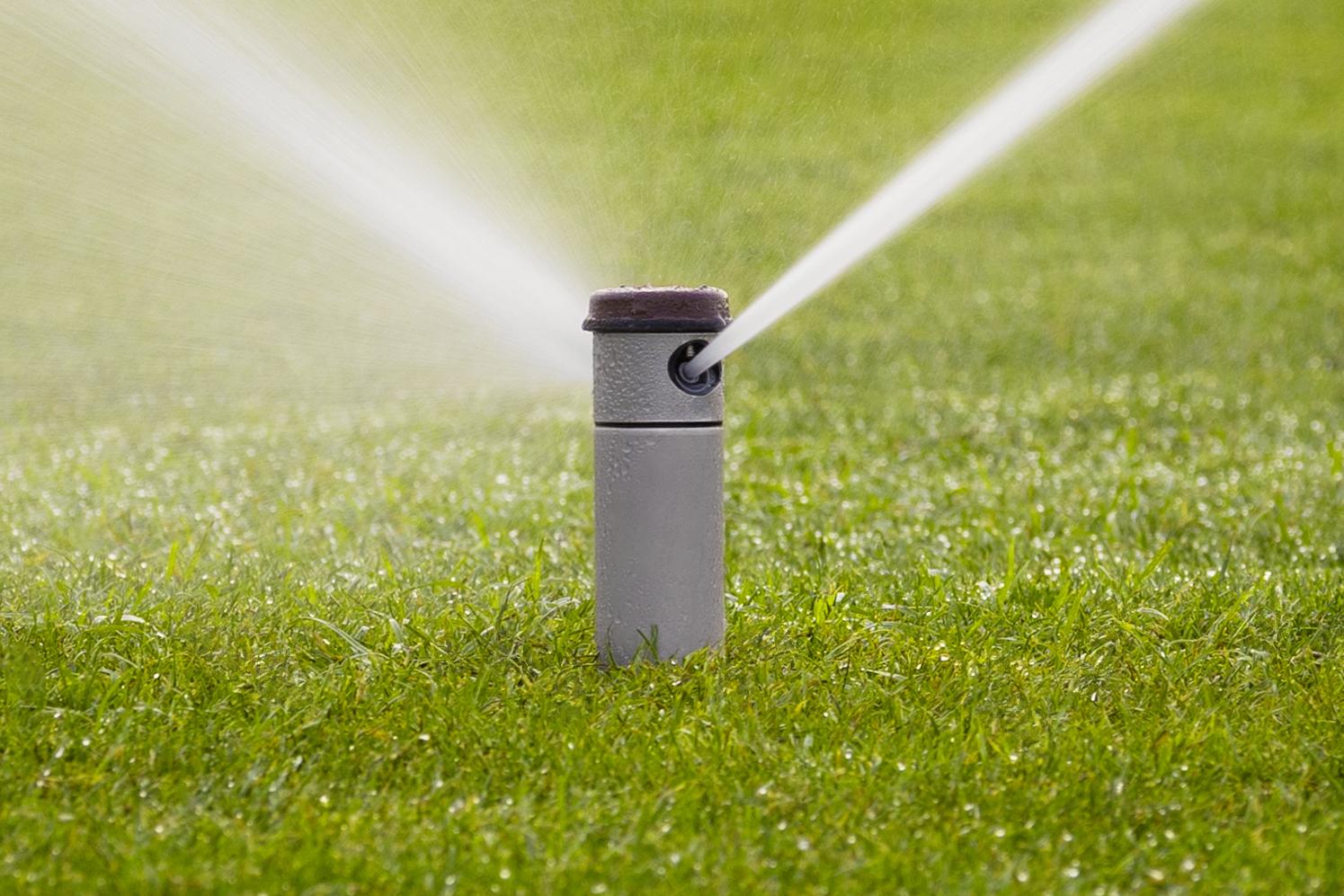

The I-40® rotor has a comprehensive list of upgraded features that make it the top choice for demanding, large turf projects.
Radius 44′ to 69′
Flow 7.6 to 29.5 GPM
Inlet Size 1″ NPT
- Durable: Stainless steel riser built to withstand tough conditions
- Accurate: Triple nozzle system provides uniform, wind-resistant distribution
- Reliable: Automatic arc return and non-strippable drive ensures dependability
Specifications
Operating Specifications
- Nozzle choices: 12
- Radius I-40: 44′ to 69′
- Radius I-40-ON: 52′ to 76′
- Flow I-40: 7.6 to 29.5 GPM
- Flow I-40-ON: 13.0 to 33.7 GPM
- Recommended pressure range: 40 to 100 PSI
- Operating pressure range: 40 to 100 PSI
- Precipitation rate: 0.4 in/hr approximately
- Nozzle trajectory: standard = 25°
- Warranty period: 5 years
Factory-Installed Options
- Reclaimed water ID
- High-speed rotation
User-Installed Options
- HSJ-1 prefabricated 1″ PVC Swing Joint
Features
The I-40 is a tough commercial rotor that delivers water with accuracy and efficiency at distances up to 70 feet. Featuring diverse, three-port nozzle options, a non-strippable drive, and a thick rubber cover built to prevent injury, it’s no wonder this rotor is found in more stadiums than any other in the world. With the strength of stainless steel, the I-40 is built to last in the harshest sports fields, public parks, and commercial environments. If efficiency, effective irrigation, and beautiful results are the goal, the I-40 is the irrigation professional’s best solution.
